Shape, axis and array properties#

Note that, in linear algebra, the dimension of a vector refers to the number of entries in an array. In NumPy, it instead defines the number of axes. For example, a 1D array is a vector such as [1, 2, 3], a 2D array is a matrix, and so forth.

First, let’s check for the shape of the data in our array. Since this image is two-dimensional (the pixels in the image form a rectangle), we might expect a two-dimensional array to represent it (a matrix). However, using the shape property of this NumPy array gives us a different result:

img.shape

(768, 1024, 3)

The output is a tuple with three elements, which means that this is a three-dimensional array. In fact, since this is a color image, and we have used the imread function to read it, the data is organized in three 2D arrays, representing color channels (in this case, red, green and blue - RGB). You can see this by looking at the shape above: it indicates that we have an array of 3 matrices, each having shape 768x1024.

Furthermore, using the ndim property of this array, we can see that

img.ndim

3

NumPy refers to each dimension as an axis. Because of how imread works, the first index in the 3rd axis is the red pixel data for our image. We can access this by using the syntax

img[:, :, 0]

array([[121, 138, 153, ..., 119, 131, 139],
       [ 89, 110, 130, ..., 118, 134, 146],
       [ 73,  94, 115, ..., 117, 133, 144],
       ...,
       [ 87,  94, 107, ..., 120, 119, 119],
       [ 85,  95, 112, ..., 121, 120, 120],
       [ 85,  97, 111, ..., 120, 119, 118]], dtype=uint8)

From the output above, we can see that every value in img[:, :, 0] is an integer value between 0 and 255, representing the level of red in each corresponding image pixel (keep in mind that this might be different if you use your own image instead of scipy.datasets.face).

As expected, this is a 768x1024 matrix:

img[:, :, 0].shape

(768, 1024)

Since we are going to perform linear algebra operations on this data, it might be more interesting to have real numbers between 0 and 1 in each entry of the matrices to represent the RGB values. We can do that by setting

img_array = img / 255

This operation, dividing an array by a scalar, works because of NumPy’s broadcasting rules. (Note that in real-world applications, it would be better to use, for example, the img_as_float utility function from scikit-image).

You can check that the above works by doing some tests; for example, inquiring about maximum and minimum values for this array:

img_array.max(), img_array.min()

(1.0, 0.0)

or checking the type of data in the array:

img_array.dtype

dtype('float64')

Note that we can assign each color channel to a separate matrix using the slice syntax:

red_array = img_array[:, :, 0]
green_array = img_array[:, :, 1]
blue_array = img_array[:, :, 2]

Operations on an axis#

It is possible to use methods from linear algebra to approximate an existing set of data. Here, we will use the SVD (Singular Value Decomposition) to try to rebuild an image that uses less singular value information than the original one, while still retaining some of its features.

Note: We will use NumPy’s linear algebra module, numpy.linalg, to perform the operations in this tutorial. Most of the linear algebra functions in this module can also be found in scipy.linalg, and users are encouraged to use the scipy module for real-world applications. However, some functions in the scipy.linalg module, such as the SVD function, only support 2D arrays. For more information on this, check the scipy.linalg page.

To proceed, import the linear algebra submodule from NumPy:

from numpy import linalg

In order to extract information from a given matrix, we can use the SVD to obtain 3 arrays which can be multiplied to obtain the original matrix. From the theory of linear algebra, given a matrix \(A\), the following product can be computed:

where \(U\) and \(V^T\) are square and \(\Sigma\) is the same size as \(A\). \(\Sigma\) is a diagonal matrix and contains the singular values of \(A\), organized from largest to smallest. These values are always non-negative and can be used as an indicator of the “importance” of some features represented by the matrix \(A\).

Let’s see how this works in practice with just one matrix first. Note that according to colorimetry, it is possible to obtain a fairly reasonable grayscale version of our color image if we apply the formula

where \(Y\) is the array representing the grayscale image, and \(R\), \(G\) and \(B\) are the red, green and blue channel arrays we had originally. Notice we can use the @ operator (the matrix multiplication operator for NumPy arrays, see numpy.matmul) for this:

img_gray = img_array @ [0.2126, 0.7152, 0.0722]

Now, img_gray has shape

img_gray.shape

(768, 1024)

To see if this makes sense in our image, we should use a colormap from matplotlib corresponding to the color we wish to see in out image (otherwise, matplotlib will default to a colormap that does not correspond to the real data).

In our case, we are approximating the grayscale portion of the image, so we will use the colormap gray:

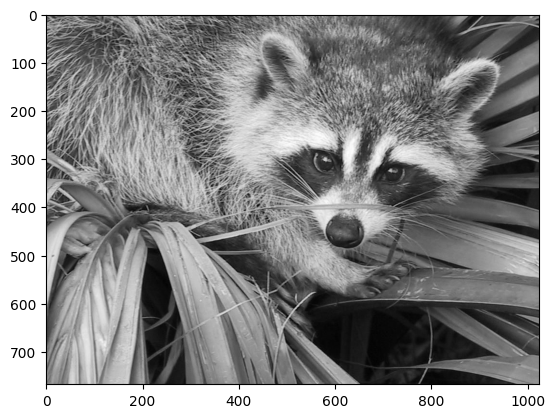

plt.imshow(img_gray, cmap="gray")
plt.show()

Now, applying the linalg.svd function to this matrix, we obtain the following decomposition:

U, s, Vt = linalg.svd(img_gray)

Note If you are using your own image, this command might take a while to run, depending on the size of your image and your hardware. Don’t worry, this is normal! The SVD can be a pretty intensive computation.

Let’s check that this is what we expected:

U.shape, s.shape, Vt.shape

((768, 768), (768,), (1024, 1024))

Note that s has a particular shape: it has only one dimension. This means that some linear algebra functions that expect 2d arrays might not work. For example, from the theory, one might expect s and Vt to be compatible for multiplication. However, this is not true as s does not have a second axis. Executing

s @ Vt

results in a ValueError. This happens because having a one-dimensional array for s, in this case, is much more economic in practice than building a diagonal matrix with the same data. To reconstruct the original matrix, we can rebuild the diagonal matrix \(\Sigma\) with the elements of s in its diagonal and with the appropriate dimensions for multiplying: in our case, \(\Sigma\) should be 768x1024 since U is 768x768 and Vt is 1024x1024. In order to add the singular values to the diagonal of Sigma, we will use the fill_diagonal function from NumPy:

import numpy as np

Sigma = np.zeros((U.shape[1], Vt.shape[0]))
np.fill_diagonal(Sigma, s)

Now, we want to check if the reconstructed U @ Sigma @ Vt is close to the original img_gray matrix.

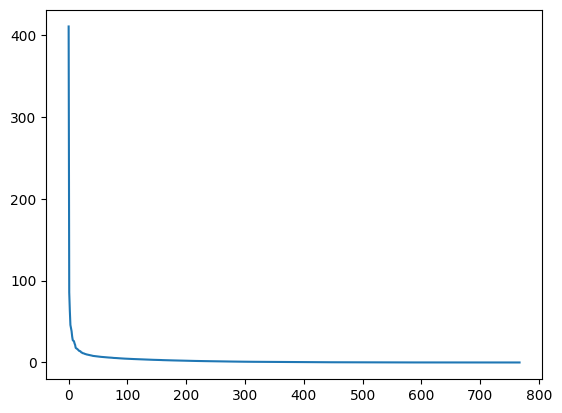

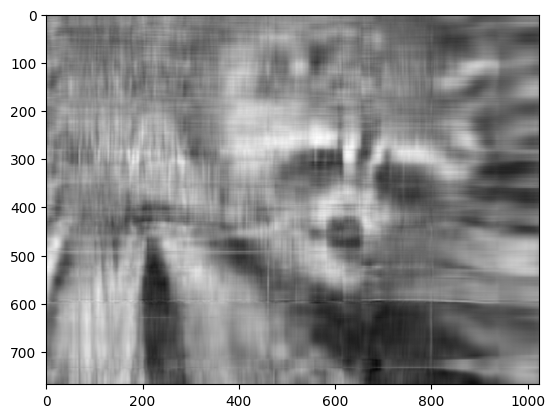

Applying to all colors#

Now we want to do the same kind of operation, but to all three colors. Our first instinct might be to repeat the same operation we did above to each color matrix individually. However, NumPy’s broadcasting takes care of this for us.

If our array has more than two dimensions, then the SVD can be applied to all axes at once. However, the linear algebra functions in NumPy expect to see an array of the form (n, M, N), where the first axis n represents the number of MxN matrices in the stack.

In our case,

img_array.shape

(768, 1024, 3)

so we need to permutate the axis on this array to get a shape like (3, 768, 1024). Fortunately, the numpy.transpose function can do that for us:

np.transpose(x, axes=(i, j, k))

indicates that the axis will be reordered such that the final shape of the transposed array will be reordered according to the indices (i, j, k).

Let’s see how this goes for our array:

img_array_transposed = np.transpose(img_array, (2, 0, 1))
img_array_transposed.shape

(3, 768, 1024)

Now we are ready to apply the SVD:

U, s, Vt = linalg.svd(img_array_transposed)

Finally, to obtain the full approximated image, we need to reassemble these matrices into the approximation. Now, note that

U.shape, s.shape, Vt.shape

((3, 768, 768), (3, 768), (3, 1024, 1024))

To build the final approximation matrix, we must understand how multiplication across different axes works.

Products with n-dimensional arrays#

If you have worked before with only one- or two-dimensional arrays in NumPy, you might use numpy.dot and numpy.matmul (or the @ operator) interchangeably. However, for n-dimensional arrays, they work in very different ways. For more details, check the documentation on numpy.matmul.

Now, to build our approximation, we first need to make sure that our singular values are ready for multiplication, so we build our Sigma matrix similarly to what we did before. The Sigma array must have dimensions (3, 768, 1024). In order to add the singular values to the diagonal of Sigma, we will again use the fill_diagonal function, using each of the 3 rows in s as the diagonal for each of the 3 matrices in Sigma:

Sigma = np.zeros((3, 768, 1024))
for j in range(3):
    np.fill_diagonal(Sigma[j, :, :], s[j, :])

Now, if we wish to rebuild the full SVD (with no approximation), we can do

reconstructed = U @ Sigma @ Vt

Note that

reconstructed.shape

(3, 768, 1024)

The reconstructed image should be indistinguishable from the original one, except for differences due to floating point errors from the reconstruction. Recall that our original image consisted of floating point values in the range [0., 1.]. The accumulation of floating point error from the reconstruction can result in values slightly outside this original range:

reconstructed.min(), reconstructed.max()

(-5.558487697898684e-15, 1.0000000000000053)

Since imshow expects values in the range, we can use clip to excise the floating point error:

reconstructed = np.clip(reconstructed, 0, 1)
plt.imshow(np.transpose(reconstructed, (1, 2, 0)))
plt.show()

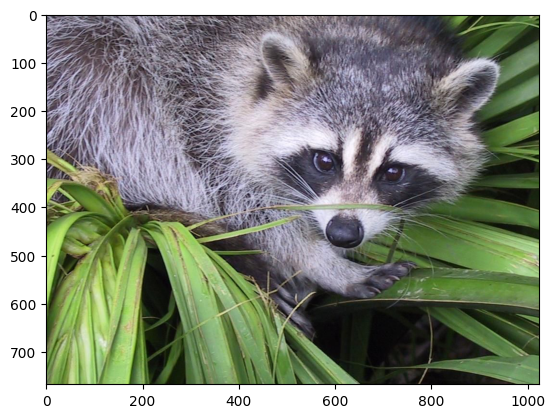

In fact, imshow peforms this clipping under-the-hood, so if you skip the first line in the previous code cell, you might see a warning message saying "Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers)."

Now, to do the approximation, we must choose only the first k singular values for each color channel. This can be done using the following syntax:

approx_img = U @ Sigma[..., :k] @ Vt[..., :k, :]

You can see that we have selected only the first k components of the last axis for Sigma (this means that we have used only the first k columns of each of the three matrices in the stack), and that we have selected only the first k components in the second-to-last axis of Vt (this means we have selected only the first k rows from every matrix in the stack Vt and all columns). If you are unfamiliar with the ellipsis syntax, it is a placeholder for other axes. For more details, see the documentation on Indexing.

Now,

approx_img.shape

(3, 768, 1024)

which is not the right shape for showing the image. Finally, reordering the axes back to our original shape of (768, 1024, 3), we can see our approximation:

plt.imshow(np.transpose(approx_img, (1, 2, 0)))
plt.show()

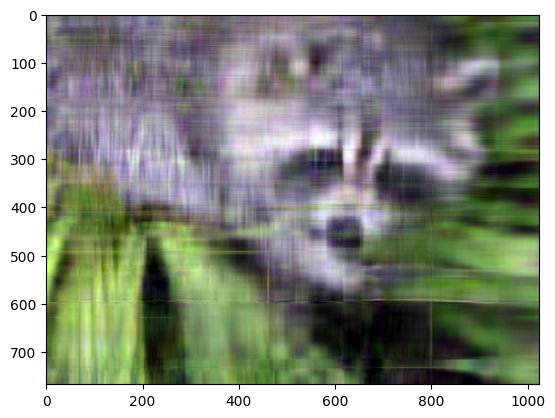

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers). Got range [-0.135671314724608..1.079453607915587].

Even though the image is not as sharp, using a small number of k singular values (compared to the original set of 768 values), we can recover many of the distinguishing features from this image.

Final words#

Of course, this is not the best method to approximate an image. However, there is, in fact, a result in linear algebra that says that the approximation we built above is the best we can get to the original matrix in terms of the norm of the difference. For more information, see G. H. Golub and C. F. Van Loan, Matrix Computations, Baltimore, MD, Johns Hopkins University Press, 1985.
