Convert the image data to the floating-point format#

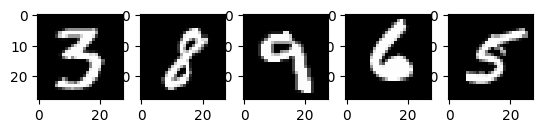

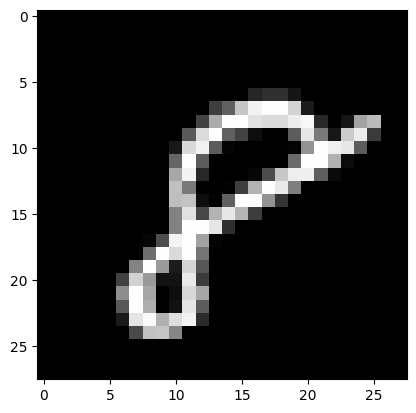

The images data contain 8-bit integers encoded in the [0, 255] interval with color values between 0 and 255.

You will normalize them into floating-point arrays in the [0, 1] interval by dividing them by 255.

1. Check that the vectorized image data has type uint8:

print("The data type of training images: {}".format(x_train.dtype))
print("The data type of test images: {}".format(x_test.dtype))

The data type of training images: uint8
The data type of test images: uint8

2. Normalize the arrays by dividing them by 255 (and thus promoting the data type from uint8 to float64) and then assign the train and test image data variables — x_train and x_test — to training_images and train_labels, respectively. To reduce the model training and evaluation time in this example, only a subset of the training and test images will be used. Both training_images and test_images will contain only 1,000 samples each out of the complete datasets of 60,000 and 10,000 images, respectively. These values can be controlled by changing the training_sample and test_sample below, up to their maximum values of 60,000 and 10,000.

training_sample, test_sample = 1000, 1000
training_images = x_train[0:training_sample] / 255
test_images = x_test[0:test_sample] / 255

3. Confirm that the image data has changed to the floating-point format:

print("The data type of training images: {}".format(training_images.dtype))
print("The data type of test images: {}".format(test_images.dtype))

The data type of training images: float64
The data type of test images: float64

Note: You can also check that normalization was successful by printing training_images[0] in a notebook cell. Your long output should contain an array of floating-point numbers:

...
       0.        , 0.        , 0.01176471, 0.07058824, 0.07058824,
       0.07058824, 0.49411765, 0.53333333, 0.68627451, 0.10196078,
       0.65098039, 1.        , 0.96862745, 0.49803922, 0.        ,
...

Convert the labels to floating point through categorical/one-hot encoding#

You will use one-hot encoding to embed each digit label as an all-zero vector with np.zeros() and place 1 for a label index. As a result, your label data will be arrays with 1.0 (or 1.) in the position of each image label.

Since there are 10 labels (from 0 to 9) in total, your arrays will look similar to this:

array([0., 0., 0., 0., 0., 1., 0., 0., 0., 0.])

1. Confirm that the image label data are integers with dtype uint8:

print("The data type of training labels: {}".format(y_train.dtype))
print("The data type of test labels: {}".format(y_test.dtype))

The data type of training labels: uint8
The data type of test labels: uint8

2. Define a function that performs one-hot encoding on arrays:

def one_hot_encoding(labels, dimension=10):
    # Define a one-hot variable for an all-zero vector
    # with 10 dimensions (number labels from 0 to 9).
    one_hot_labels = labels[..., None] == np.arange(dimension)[None]
    # Return one-hot encoded labels.
    return one_hot_labels.astype(np.float64)

3. Encode the labels and assign the values to new variables:

training_labels = one_hot_encoding(y_train[:training_sample])
test_labels = one_hot_encoding(y_test[:test_sample])

4. Check that the data type has changed to floating point:

print("The data type of training labels: {}".format(training_labels.dtype))
print("The data type of test labels: {}".format(test_labels.dtype))

The data type of training labels: float64
The data type of test labels: float64

5. Examine a few encoded labels:

print(training_labels[0])
print(training_labels[1])
print(training_labels[2])

[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]

…and compare to the originals:

print(y_train[0])
print(y_train[1])
print(y_train[2])

5
0
4

You have finished preparing the dataset.

Neural network building blocks with NumPy#

• Layers: These building blocks work as data filters — they process data and learn representations from inputs to better predict the target outputs.

  You will use 1 hidden layer in your model to pass the inputs forward (forward propagation) and propagate the gradients/error derivatives of a loss function backward (backpropagation). These are input, hidden and output layers.

  In the hidden (middle) and output (last) layers, the neural network model will compute the weighted sum of inputs. To compute this process, you will use NumPy’s matrix multiplication function (the “dot multiply” or np.dot(layer, weights)).

  Note: For simplicity, the bias term is omitted in this example (there is no np.dot(layer, weights) + bias).

• Weights: These are important adjustable parameters that the neural network fine-tunes by forward and backward propagating the data. They are optimized through a process called gradient descent. Before the model training starts, the weights are randomly initialized with NumPy’s Generator.random().

  The optimal weights should produce the highest prediction accuracy and the lowest error on the training and test sets.

• Activation function: Deep learning models are capable of determining non-linear relationships between inputs and outputs and these non-linear functions are usually applied to the output of each layer.

  You will use a rectified linear unit (ReLU) to the hidden layer’s output (for example, relu(np.dot(layer, weights)).

• Regularization: This technique helps prevent the neural network model from overfitting.

  In this example, you will use a method called dropout — dilution — that randomly sets a number of features in a layer to 0s. You will define it with NumPy’s Generator.integers() method and apply it to the hidden layer of the network.

• Loss function: The computation determines the quality of predictions by comparing the image labels (the truth) with the predicted values in the final layer’s output.

  For simplicity, you will use a basic total squared error using NumPy’s np.sum() function (for example, np.sum((final_layer_output - image_labels) ** 2)).

• Accuracy: This metric measures the accuracy of the network’s ability to predict on the data it hasn’t seen.

Model architecture and training summary#

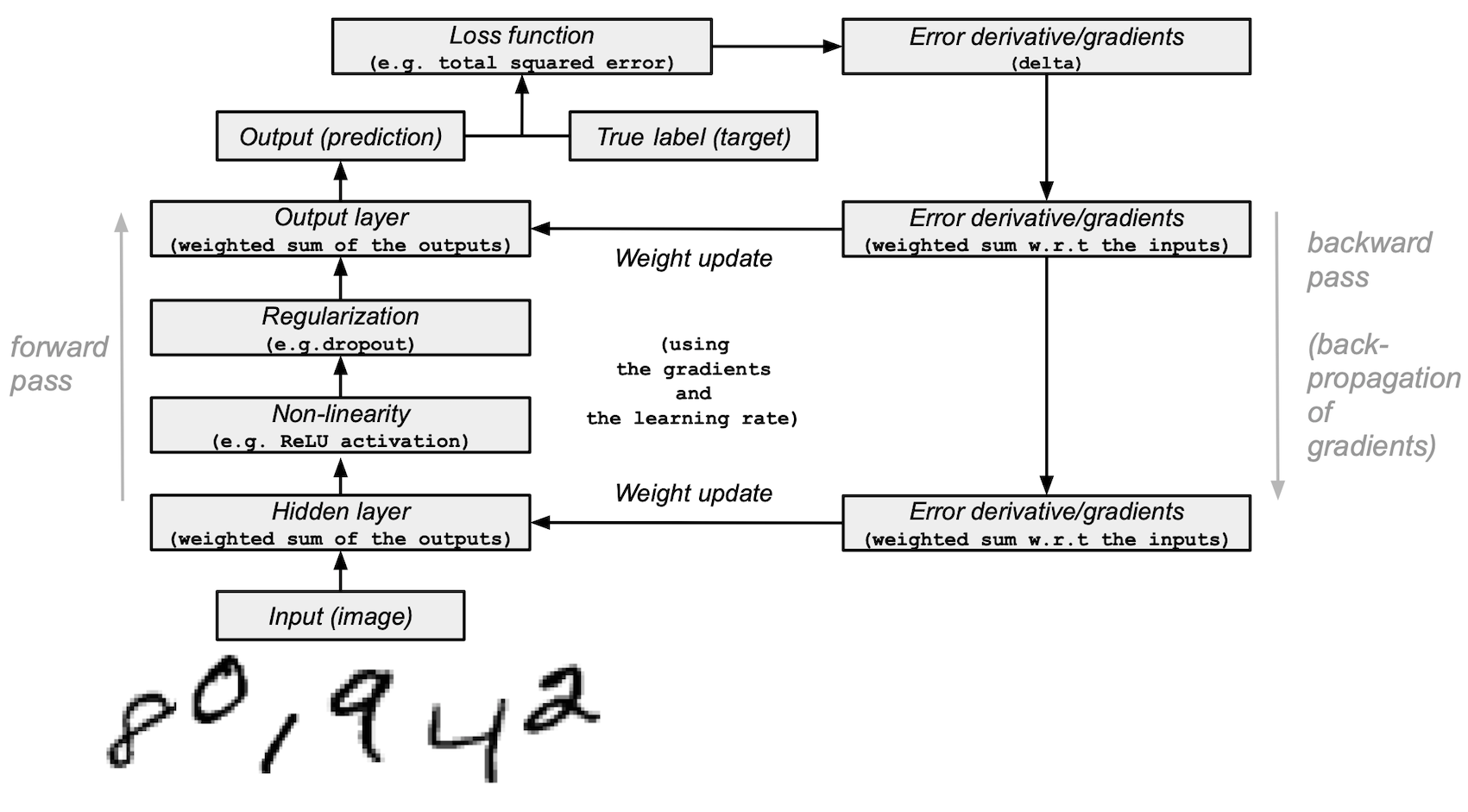

Here is a summary of the neural network model architecture and the training process:

• The input layer:

  It is the input for the network — the previously preprocessed data that is loaded from training_images into layer_0.

• The hidden (middle) layer:

  layer_1 takes the output from the previous layer and performs matrix-multiplication of the input by weights (weights_1) with NumPy’s np.dot()).

  Then, this output is passed through the ReLU activation function for non-linearity and then dropout is applied to help with overfitting.

• The output (last) layer:

  layer_2 ingests the output from layer_1 and repeats the same “dot multiply” process with weights_2.

  The final output returns 10 scores for each of the 0-9 digit labels. The network model ends with a size 10 layer — a 10-dimensional vector.

• Forward propagation, backpropagation, training loop:

  In the beginning of model training, your network randomly initializes the weights and feeds the input data forward through the hidden and output layers. This process is the forward pass or forward propagation.

  Then, the network propagates the “signal” from the loss function back through the hidden layer and adjusts the weights values with the help of the learning rate parameter (more on that later).

Note: In more technical terms, you:

1. Measure the error by comparing the real label of an image (the truth) with the prediction of the model.

2. Differentiate the loss function.

3. Ingest the gradients with the respect to the output, and backpropagate them with the respect to the inputs through the layer(s).

Since the network contains tensor operations and weight matrices, backpropagation uses the chain rule.

With each iteration (epoch) of the neural network training, this forward and backward propagation cycle adjusts the weights, which is reflected in the accuracy and error metrics. As you train the model, your goal is to minimize the error and maximize the accuracy on the training data, where the model learns from, as well as the test data, where you evaluate the model.

Compose the model and begin training and testing it#

Having covered the main deep learning concepts and the neural network architecture, let’s write the code.

1. We’ll start by creating a new random number generator, providing a seed for reproducibility:

seed = 884736743
rng = np.random.default_rng(seed)

2. For the hidden layer, define the ReLU activation function for forward propagation and ReLU’s derivative that will be used during backpropagation:

# Define ReLU that returns the input if it's positive and 0 otherwise.
def relu(x):
    return (x >= 0) * x


# Set up a derivative of the ReLU function that returns 1 for a positive input
# and 0 otherwise.
def relu2deriv(output):
    return output >= 0

3. Set certain default values of hyperparameters, such as:

• Learning rate: learning_rate — helps limit the magnitude of weight updates to prevent them from overcorrecting.

• Epochs (iterations): epochs — the number of complete passes — forward and backward propagations — of the data through the network. This parameter can positively or negatively affect the results. The higher the iterations, the longer the learning process may take. Because this is a computationally intensive task, we have chosen a very low number of epochs (20). To get meaningful results, you should choose a much larger number.

• Size of the hidden (middle) layer in a network: hidden_size — different sizes of the hidden layer can affect the results during training and testing.

• Size of the input: pixels_per_image — you have established that the image input is 784 (28x28) (in pixels).

• Number of labels: num_labels — indicates the output number for the output layer where the predictions occur for 10 (0 to 9) handwritten digit labels.

learning_rate = 0.005
epochs = 20
hidden_size = 100
pixels_per_image = 784
num_labels = 10

4. Initialize the weight vectors that will be used in the hidden and output layers with random values:

weights_1 = 0.2 * rng.random((pixels_per_image, hidden_size)) - 0.1
weights_2 = 0.2 * rng.random((hidden_size, num_labels)) - 0.1

5. Set up the neural network’s learning experiment with a training loop and start the training process. Note that the model is evaluated against the test set at each epoch to track its performance over the training epochs.

Start the training process:

# To store training and test set losses and accurate predictions
# for visualization.
store_training_loss = []
store_training_accurate_pred = []
store_test_loss = []
store_test_accurate_pred = []

# This is a training loop.
# Run the learning experiment for a defined number of epochs (iterations).
for j in range(epochs):

    #################
    # Training step #
    #################

    # Set the initial loss/error and the number of accurate predictions to zero.
    training_loss = 0.0
    training_accurate_predictions = 0

    # For all images in the training set, perform a forward pass
    # and backpropagation and adjust the weights accordingly.
    for i in range(len(training_images)):
        # Forward propagation/forward pass:
        # 1. The input layer:
        #    Initialize the training image data as inputs.
        layer_0 = training_images[i]
        # 2. The hidden layer:
        #    Take in the training image data into the middle layer by
        #    matrix-multiplying it by randomly initialized weights.
        layer_1 = np.dot(layer_0, weights_1)
        # 3. Pass the hidden layer's output through the ReLU activation function.
        layer_1 = relu(layer_1)
        # 4. Define the dropout function for regularization.
        dropout_mask = rng.integers(low=0, high=2, size=layer_1.shape)
        # 5. Apply dropout to the hidden layer's output.
        layer_1 *= dropout_mask * 2
        # 6. The output layer:
        #    Ingest the output of the middle layer into the the final layer
        #    by matrix-multiplying it by randomly initialized weights.
        #    Produce a 10-dimension vector with 10 scores.
        layer_2 = np.dot(layer_1, weights_2)

        # Backpropagation/backward pass:
        # 1. Measure the training error (loss function) between the actual
        #    image labels (the truth) and the prediction by the model.
        training_loss += np.sum((training_labels[i] - layer_2) ** 2)
        # 2. Increment the accurate prediction count.
        training_accurate_predictions += int(
            np.argmax(layer_2) == np.argmax(training_labels[i])
        )
        # 3. Differentiate the loss function/error.
        layer_2_delta = training_labels[i] - layer_2
        # 4. Propagate the gradients of the loss function back through the hidden layer.
        layer_1_delta = np.dot(weights_2, layer_2_delta) * relu2deriv(layer_1)
        # 5. Apply the dropout to the gradients.
        layer_1_delta *= dropout_mask
        # 6. Update the weights for the middle and input layers
        #    by multiplying them by the learning rate and the gradients.
        weights_1 += learning_rate * np.outer(layer_0, layer_1_delta)
        weights_2 += learning_rate * np.outer(layer_1, layer_2_delta)

    # Store training set losses and accurate predictions.
    store_training_loss.append(training_loss)
    store_training_accurate_pred.append(training_accurate_predictions)

    ###################
    # Evaluation step #
    ###################

    # Evaluate model performance on the test set at each epoch.

    # Unlike the training step, the weights are not modified for each image
    # (or batch). Therefore the model can be applied to the test images in a
    # vectorized manner, eliminating the need to loop over each image
    # individually:

    results = relu(test_images @ weights_1) @ weights_2

    # Measure the error between the actual label (truth) and prediction values.
    test_loss = np.sum((test_labels - results) ** 2)

    # Measure prediction accuracy on test set
    test_accurate_predictions = np.sum(
        np.argmax(results, axis=1) == np.argmax(test_labels, axis=1)
    )

    # Store test set losses and accurate predictions.
    store_test_loss.append(test_loss)
    store_test_accurate_pred.append(test_accurate_predictions)

    # Summarize error and accuracy metrics at each epoch
    print(
        (
            f"Epoch: {j}\n"
            f"  Training set error: {training_loss / len(training_images):.3f}\n"
            f"  Training set accuracy: {training_accurate_predictions / len(training_images)}\n"
            f"  Test set error: {test_loss / len(test_images):.3f}\n"
            f"  Test set accuracy: {test_accurate_predictions / len(test_images)}"
        )
    )

Epoch: 0
  Training set error: 0.898
  Training set accuracy: 0.397
  Test set error: 0.680
  Test set accuracy: 0.582

Epoch: 1
  Training set error: 0.656
  Training set accuracy: 0.633
  Test set error: 0.607
  Test set accuracy: 0.641

Epoch: 2
  Training set error: 0.592
  Training set accuracy: 0.68
  Test set error: 0.569
  Test set accuracy: 0.679

Epoch: 3
  Training set error: 0.556
  Training set accuracy: 0.7
  Test set error: 0.541
  Test set accuracy: 0.708

Epoch: 4
  Training set error: 0.534
  Training set accuracy: 0.732
  Test set error: 0.526
  Test set accuracy: 0.729

Epoch: 5
  Training set error: 0.515
  Training set accuracy: 0.715
  Test set error: 0.500
  Test set accuracy: 0.739

Epoch: 6
  Training set error: 0.495
  Training set accuracy: 0.748
  Test set error: 0.487
  Test set accuracy: 0.753

Epoch: 7
  Training set error: 0.483
  Training set accuracy: 0.769
  Test set error: 0.486
  Test set accuracy: 0.747

Epoch: 8
  Training set error: 0.473
  Training set accuracy: 0.776
  Test set error: 0.473
  Test set accuracy: 0.752

Epoch: 9
  Training set error: 0.460
  Training set accuracy: 0.788
  Test set error: 0.462
  Test set accuracy: 0.762

Epoch: 10
  Training set error: 0.465
  Training set accuracy: 0.769
  Test set error: 0.462
  Test set accuracy: 0.767

Epoch: 11
  Training set error: 0.443
  Training set accuracy: 0.801
  Test set error: 0.456
  Test set accuracy: 0.775

Epoch: 12
  Training set error: 0.448
  Training set accuracy: 0.795
  Test set error: 0.455
  Test set accuracy: 0.772

Epoch: 13
  Training set error: 0.438
  Training set accuracy: 0.787
  Test set error: 0.453
  Test set accuracy: 0.778

Epoch: 14
  Training set error: 0.446
  Training set accuracy: 0.791
  Test set error: 0.450
  Test set accuracy: 0.779

Epoch: 15
  Training set error: 0.441
  Training set accuracy: 0.788
  Test set error: 0.452
  Test set accuracy: 0.772

Epoch: 16
  Training set error: 0.437
  Training set accuracy: 0.786
  Test set error: 0.453
  Test set accuracy: 0.772

Epoch: 17
  Training set error: 0.436
  Training set accuracy: 0.794
  Test set error: 0.449
  Test set accuracy: 0.778

Epoch: 18
  Training set error: 0.433
  Training set accuracy: 0.801
  Test set error: 0.450
  Test set accuracy: 0.774

Epoch: 19
  Training set error: 0.429
  Training set accuracy: 0.785
  Test set error: 0.436
  Test set accuracy: 0.784

The training process may take many minutes, depending on a number of factors, such as the processing power of the machine you are running the experiment on and the number of epochs. To reduce the waiting time, you can change the epoch (iteration) variable from 100 to a lower number, reset the runtime (which will reset the weights), and run the notebook cells again.

After executing the cell above, you can visualize the training and test set errors and accuracy for an instance of this training process.

epoch_range = np.arange(epochs) + 1  # Starting from 1

# The training set metrics.
training_metrics = {
    "accuracy": np.asarray(store_training_accurate_pred) / len(training_images),
    "error": np.asarray(store_training_loss) / len(training_images),
}

# The test set metrics.
test_metrics = {
    "accuracy": np.asarray(store_test_accurate_pred) / len(test_images),
    "error": np.asarray(store_test_loss) / len(test_images),
}

# Display the plots.
fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(15, 5))
for ax, metrics, title in zip(
    axes, (training_metrics, test_metrics), ("Training set", "Test set")
):
    # Plot the metrics
    for metric, values in metrics.items():
        ax.plot(epoch_range, values, label=metric.capitalize())
    ax.set_title(title)
    ax.set_xlabel("Epochs")
    ax.legend()
plt.show()

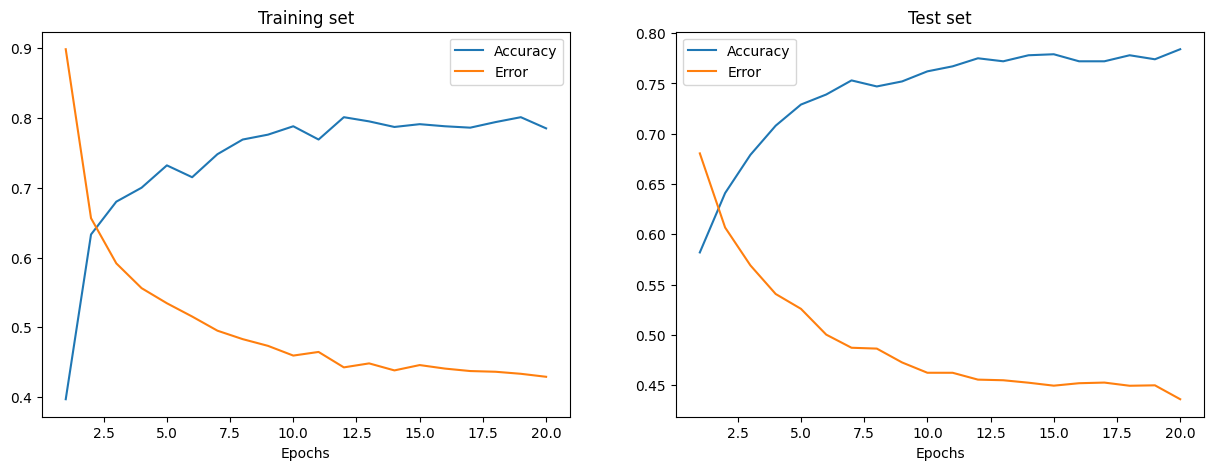

The training and testing error is shown above in the left and right plots, respectively. As the number of Epochs increases, the total error decreases and the accuracy increases.

The accuracy rates that your model reaches during training and testing may be somewhat plausible but you may also find the error rates to be quite high.

To reduce the error during training and testing, you can consider changing the simple loss function to, for example, categorical cross-entropy. Other possible solutions are discussed below.
