What you’ll do#

Calculate Air Quality Indices (AQI) and perform paired Student’s t-test on them.

What you’ll learn#

• You’ll learn the concept of moving averages

• You’ll learn how to calculate Air Quality Index (AQI)

• You’ll learn how to perform a paired Student’s t-test and find the t and p values

• You’ll learn how to interpret these values

What you’ll need#

• SciPy installed in your environment

• Basic understanding of statistical terms like population, sample, mean, standard deviation etc.

The problem of air pollution#

Air pollution is one of the most prominent types of pollution we face that has an immediate effect on our daily lives. The COVID-19 pandemic resulted in lockdowns in different parts of the world; offering a rare opportunity to study the effect of human activity (or lack thereof) on air pollution. In this tutorial, we will study the air quality in Delhi, one of the worst affected cities by air pollution, before and during the lockdown from March to June 2020. For this, we will first compute the Air Quality Index for each hour from the collected pollutant measurements. Next, we will sample these indices and perform a paired Student’s t-test on them. It will statistically show us that the air quality improved due to the lockdown, supporting our intuition.

Let’s start by importing the necessary libraries into our environment.

import numpy as np
from numpy.random import default_rng
from scipy import stats

Building the dataset#

We will use a condensed version of the Air Quality Data in India dataset. This dataset contains air quality data and AQI (Air Quality Index) at hourly and daily level of various stations across multiple cities in India. The condensed version available with this tutorial contains hourly pollutant measurements for Delhi from May 31, 2019 to June 30, 2020. It has measurements of the standard pollutants that are required for Air Quality Index calculation and a few other important ones: Particulate Matter (PM 2.5 and PM 10), nitrogen dioxide (NO2), ammonia (NH3), sulfur dioxide (SO2), carbon monoxide (CO), ozone (O3), oxides of nitrogen (NOx), nitric oxide (NO), benzene, toluene, and xylene.

Let’s print out the first few rows to have a glimpse of our dataset.

! head air-quality-data.csv

Datetime,PM2.5,PM10,NO2,NH3,SO2,CO,O3,NOx,NO,Benzene,Toluene,Xylene
2019-05-31 00:00:00,103.26,305.46,94.71,31.43,30.16,3.0,18.06,178.31,152.73,13.65,83.47,2.54
2019-05-31 01:00:00,104.47,309.14,74.66,34.08,27.02,1.69,18.65,106.5,79.98,11.35,76.79,2.91
2019-05-31 02:00:00,90.0,314.02,48.11,32.6,18.12,0.83,28.27,48.45,25.27,5.66,32.91,1.59
2019-05-31 03:00:00,78.01,356.14,45.45,30.21,16.78,0.79,27.47,44.22,21.5,3.6,21.41,0.78
2019-05-31 04:00:00,80.19,372.9,45.23,28.68,16.41,0.76,26.92,44.06,22.15,4.5,23.39,0.62
2019-05-31 05:00:00,83.59,389.97,39.49,27.71,17.42,0.76,28.71,39.33,21.04,3.25,23.59,0.56
2019-05-31 06:00:00,79.04,371.64,39.61,26.87,16.91,0.84,29.26,43.11,24.37,3.12,15.27,0.46
2019-05-31 07:00:00,77.32,361.88,42.63,27.26,17.86,0.96,27.07,48.22,28.81,3.32,14.42,0.41
2019-05-31 08:00:00,84.3,377.77,42.49,28.41,20.19,0.98,33.05,48.22,27.76,3.4,14.53,0.4

For the purpose of this tutorial, we are only concerned with standard pollutants required for calculating the AQI, viz., PM 2.5, PM 10, NO2, NH3, SO2, CO, and O3. So, we will only import these particular columns with np.loadtxt. We’ll then slice and create two sets: pollutants_A with PM 2.5, PM 10, NO2, NH3, and SO2, and pollutants_B with CO and O3. The two sets will be processed slightly differently, as we’ll see later on.

pollutant_data = np.loadtxt("air-quality-data.csv", dtype=float, delimiter=",",
                            skiprows=1, usecols=range(1, 8))
pollutants_A = pollutant_data[:, 0:5]
pollutants_B = pollutant_data[:, 5:]

print(pollutants_A.shape)
print(pollutants_B.shape)

(9528, 5)
(9528, 2)

Our dataset might contain missing values, denoted by NaN, so let’s do a quick check with np.isfinite.

np.all(np.isfinite(pollutant_data))

True

With this, we have successfully imported the data and checked that it is complete. Let’s move on to the AQI calculations!

Calculating the Air Quality Index#

We will calculate the AQI using the method adopted by the Central Pollution Control Board of India. To summarize the steps:

• Collect 24-hourly average concentration values for the standard pollutants; 8-hourly in case of CO and O3.

• Calculate the sub-indices for these pollutants with the formula:

  \[ Ip = \dfrac{\text{IHi – ILo}}{\text{BPHi – BPLo}}\cdot{\text{Cp – BPLo}} + \text{ILo} \]

  Where,

  Ip = sub-index of pollutant p
Cp = averaged concentration of pollutant p
BPHi = concentration breakpoint i.e. greater than or equal to Cp
BPLo = concentration breakpoint i.e. less than or equal to Cp
IHi = AQI value corresponding to BPHi
ILo = AQI value corresponding to BPLo

• The maximum sub-index at any given time is the Air Quality Index.

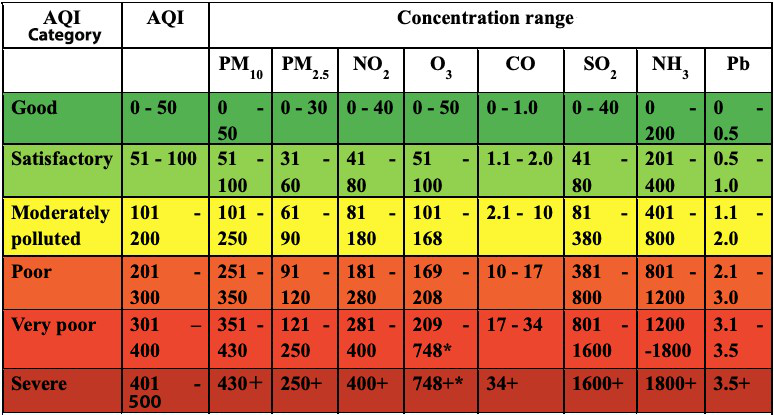

The Air Quality Index is calculated with the help of breakpoint ranges as shown in the chart below.

Let’s create two arrays to store the AQI ranges and breakpoints so that we can use them later for our calculations.

AQI = np.array([0, 51, 101, 201, 301, 401, 501])

breakpoints = {
    'PM2.5': np.array([0, 31, 61, 91, 121, 251]),
    'PM10': np.array([0, 51, 101, 251, 351, 431]),
    'NO2': np.array([0, 41, 81, 181, 281, 401]),
    'NH3': np.array([0, 201, 401, 801, 1201, 1801]),
    'SO2': np.array([0, 41, 81, 381, 801, 1601]),
    'CO': np.array([0, 1.1, 2.1, 10.1, 17.1, 35]),
    'O3': np.array([0, 51, 101, 169, 209, 749])
}

def moving_mean(a, n):
    ret = np.cumsum(a, dtype=float, axis=0)
    ret[n:] = ret[n:] - ret[:-n]
    return ret[n - 1:] / n

pollutants_A_24hr_avg = moving_mean(pollutants_A, 24)
pollutants_B_8hr_avg = moving_mean(pollutants_B, 8)[-(pollutants_A_24hr_avg.shape[0]):]

pollutants = np.concatenate((pollutants_A_24hr_avg, pollutants_B_8hr_avg), axis=1)

def compute_indices(pol, con):
    bp = breakpoints[pol]

    if pol == 'CO':
        inc = 0.1
    else:
        inc = 1

    if bp[0] <= con < bp[1]:
        Bl = bp[0]
        Bh = bp[1] - inc
        Ih = AQI[1] - inc
        Il = AQI[0]

    elif bp[1] <= con < bp[2]:
        Bl = bp[1]
        Bh = bp[2] - inc
        Ih = AQI[2] - inc
        Il = AQI[1]

    elif bp[2] <= con < bp[3]:
        Bl = bp[2]
        Bh = bp[3] - inc
        Ih = AQI[3] - inc
        Il = AQI[2]

    elif bp[3] <= con < bp[4]:
        Bl = bp[3]
        Bh = bp[4] - inc
        Ih = AQI[4] - inc
        Il = AQI[3]

    elif bp[4] <= con < bp[5]:
        Bl = bp[4]
        Bh = bp[5] - inc
        Ih = AQI[5] - inc
        Il = AQI[4]

    elif bp[5] <= con:
        Bl = bp[5]
        Bh = bp[5] + bp[4] - (2 * inc)
        Ih = AQI[6]
        Il = AQI[5]

    else:
        print("Concentration out of range!")

    return ((Ih - Il) / (Bh - Bl)) * (con - Bl) + Il

vcompute_indices = np.vectorize(compute_indices)

sub_indices = np.stack((vcompute_indices('PM2.5', pollutants[..., 0]),
                        vcompute_indices('PM10', pollutants[..., 1]),
                        vcompute_indices('NO2', pollutants[..., 2]),
                        vcompute_indices('NH3', pollutants[..., 3]),
                        vcompute_indices('SO2', pollutants[..., 4]),
                        vcompute_indices('CO', pollutants[..., 5]),
                        vcompute_indices('O3', pollutants[..., 6])), axis=1)

aqi_array = np.max(sub_indices, axis=1)

Paired Student’s t-test on the AQIs#

Hypothesis testing is a form of descriptive statistics used to help us make decisions with the data. From the calculated AQI data, we want to find out if there was a statistically significant difference in average AQI before and after the lockdown was imposed. We will use the left-tailed, paired Student’s t-test to compute two test statistics- the t statistic and the p value. We will then compare these with the corresponding critical values to make a decision.

datetime = np.loadtxt("air-quality-data.csv", dtype='M8[h]', delimiter=",",
                         skiprows=1, usecols=(0, ))[-(pollutants_A_24hr_avg.shape[0]):]

after_lock = aqi_array[np.where(datetime >= np.datetime64('2020-03-24T00'))]

before_lock = aqi_array[np.where(datetime <= np.datetime64('2020-03-21T00'))][-(after_lock.shape[0]):]

print(after_lock.shape)
print(before_lock.shape)

(2376,)
(2376,)

rng = default_rng()

before_sample = rng.choice(before_lock, size=30, replace=False)
after_sample = rng.choice(after_lock, size=30, replace=False)

def t_test(x, y):
    diff = y - x
    var = np.var(diff, ddof=1)
    num = np.mean(diff)
    denom = np.sqrt(var / len(x))
    return np.divide(num, denom)

t_value = t_test(before_sample, after_sample)

dof = len(before_sample) - 1

p_value = stats.distributions.t.cdf(t_value, dof)

print("The t value is {} and the p value is {}.".format(t_value, p_value))

The t value is -5.937349378604617 and the p value is 9.458793853698888e-07.

What do the t and p values mean?#

We will now compare the calculated test statistics with the critical test statistics. The critical t value is calculated by looking up the t-distribution table.

From the table above, the critical value is 1.699 for 29 dof at a confidence level of 95%. Since we are using the left tailed test, our critical value is -1.699. Clearly, the calculated t value is less than the critical value so we can safely reject the null hypothesis.

The critical p value, denoted by \(\alpha\), is usually chosen to be 0.05, corresponding to a confidence level of 95%. If the calculated p value is less than \(\alpha\), then the null hypothesis can be safely rejected. Clearly, our p value is much less than \(\alpha\), so we can reject the null hypothesis.

Note that this does not mean we can accept the alternative hypothesis. It only tells us that there is not enough evidence to reject \(H_{a}\). In other words, we fail to reject the alternative hypothesis so, it may be true.

In practice…#

• The pandas library is preferable to use for time-series data analysis.

• The SciPy stats module provides the stats.ttest_rel function which can be used to get the t statistic and p value.

• In real life, data are generally not normally distributed. There are tests for such non-normal data like the Wilcoxon test.

Further reading#

• There are a host of statistical tests you can choose according to the characteristics of the given data. Read more about them at A Gentle Introduction to Statistical Data Distributions.

• There are various versions of the Student’s t-test that you can adopt according to your needs.
